Additional Technical Specifications:

General:
Frequency Range: 136-174MHz (V) , 400-480MHz (U)
Channel Capacity: 4000 channels
Channel Spacing: 25KHz (Wide Band) ,12.5KHz (Narrow Band)
Phase-locked Step: 5KHz, 6.25KHz
Operating Voltage: 7.4V DC ±20%
Frequency Stability: ±2.5ppm
Operating Temperature: -20℃~ +55℃
Size: 129×61×39mm (with battery pack)
Weight: 282g (with battery pack, antenna)

Receiver:
Sensitivity: (12dB SINAD) ≤0.25μV (WB), ≤0.35μV (NB)
Digital Sensitivity: 0.3uV/-117.4dBm (BER 5%); 0.7uV/-110dBm (BER 1%)
Adjacent Channel Selectivity: ≥70dB (WB) ≥60dB (NB)
Spurious Emission: ≤-57dB (WB) ≤-57dB (NB)
Spurious Rejection: ≥70dB (WB) ≥70dB (NB)
Blocking: 84db
Hum & Noise: ≥45dB (WB) ≥40dB(NB)
Audio Distortion: ≤5%
Audio Power Output: 1000mW/16Ω

Transmitter:
Power Output VHF: 7/5/2.5/1W, UHF: 6/5/2.5/1W
Modulation: ±5.0KHz@25KHz (WB) ±2.5KHz@12.5KHz (NB) Adjacent Channel Power: ≥70dB (WB) ≥60dB (NB)
Hum & Noise: ≥40dB (WB) ≥36dB (NB)
Spurious Emission: ≤-36dB (WB) ≤-36dB (NB)
4FSK Digital Modulation: 12.5KHz（data）7K60FXD; 12.5KHz（data+voice）7K60FXE
Audio Distortion: ≤5%
Error rate: ≤3%

Product Features

• BaoFeng Tech is the only authorized BaoFeng & BTECH Distributor to honor the Manufacturer Warranty. Only BaoFeng Tech offers warranty claims without shipping anything to China. You must insure that BaoFeng Tech is your selected buying option when buying to be able to have the full USA warranty.

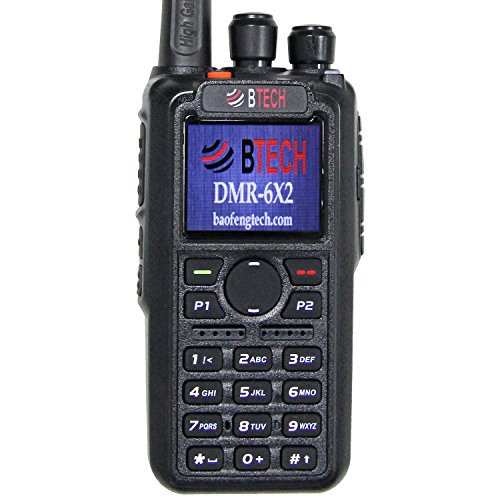

• The DMR-6X2 Allows for Front Panel Programmable Channels, but for advanced features software programming is recommended (Programming Cable Included), Requires Windows PC (free software available at: baofengtech.com/dmr-6×2), Programmable Side Keys, and Upgradeable Firmware
• Exclusive BTECH Firmware (Designed in the USA), Dual Slot DMR Radio (Tier 1 and Tier 2 Compliant); 4000 Channels, 10,000 Talk Groups, 150,000 Contacts, Large TFT Color Display, High / Med-High / Med-Low / Low Power Settings: (7W VHF/6W UHF, 5W, 2.5W, 1W)
• K1 Accessory Jack (QHM-22 Speaker Mic Compatible), SMA-Female Antenna (Compatible with Nagoya SMA-Female Antennas)
• What’s in the Box: DMR-6X2, 2100 mAh standard battery, 3100 mAh High Capacity battery, 2 Belt Clips, Programming Cable, Charger Base, Charger Transformer, Earpiece Kit, 6″ Dual Band Antenna, Wrist Strap, User’s Manual
